There are various Air conditioning units available for caravans and when making your choice, consideration should be given to the age of the caravan, the relevance to this is how strong the roof is and whether it will take the weight of the Air conditioner. If in doubt a call to the caravan manufacturers technical department should confirm if your model of caravan was built with extra strength in the roof to take an air conditioner.



A strange situation has occured over the years where by most caravan manufacturers never used to build the roofs to take the weight of the air conditioner, then as air conditioning became more popular the roofs were strengthened and for some reason known to themselves  (probably cost)  they have stopped strengthening them again.

I must also add that not all manufacturers have stopped,  and some have always been strong enough to take the weight of an air conditioner or even the weight of a small car as shown in one of their advertisments!!.



Listed below are some of the air conditioners available with the full range available to view in the Telair catalogue opposite.  Particular attention should be paid to under seat air conditioner/heat pump units if you think the strength of your caravan roof could be an issue. As the heavier condenser unit and evaporator is mounted either under the caravan or inside under the seating area.  So called split unit's can still  be obtained if  your requirments makes it necessary to have the heavy condenser mounted at floor level with the evaporator  (cold air blower) mounted  high up at cupboard level blowing cooled air directly outwards.





Silent 7300H - 230 volt

Monoblock conditioners specially designed to be installed on the roofs of medium- to large-sized motorhome and caravans.Special care has been taken to ensure LOW NOISE both inside and outside.

• HEAT PUMP - High-Efficiency Heat Pump heating supplies 2.3 kW heating power (8000 BTU) with only 0.98 kW consumption.The heat pump is effective for outside temperatures down to -2°C; below this temperature, its efficiency is considerably reduced.

• AUTOMATIC CONTROL - By actuating the AUTO function, the air conditioner selects the most suitable ventilation speed and the cooling or heating function automatically.

• REMOTE CONTROL - all functions can be performed via the remote control

• Anti-ice protection PROBES
• INTERNAL FILTERS – can be changed and washed
• Suitable for roofs having thickness from 30 to 70 mm


Silent 12000H - 230 Volt

Monoblock conditioners specially designed to be installed on the roofs of medium- to large-sized motorhome and caravans.Special care has been taken to ensure LOW NOISE both inside and, by using double noise reduction system (DNR).

• HEAT PUMP - High-Efficiency Heat Pump heating supplies 2.0 kW heating power with only 0.95 kW 1.48 kW consumption. The heat pump is effective for outside temperatures down to - 2°C; below this temperature, its efficiency is considerably reduced.

• AUTOMATIC CONTROL - By setting a given temperature (e.g. 25°C), the digital control panel will automatically select the ideal ventilation speed and either the Cooling or Heating function.
Another major advantage offered by the conditioners in this series, is that they can be installed in a standard-sized aperture (40x40 cm), and also in the newly introduced larger aperture (44x44 cm on request). The tangential-type diffuser has activated charcoal filters.

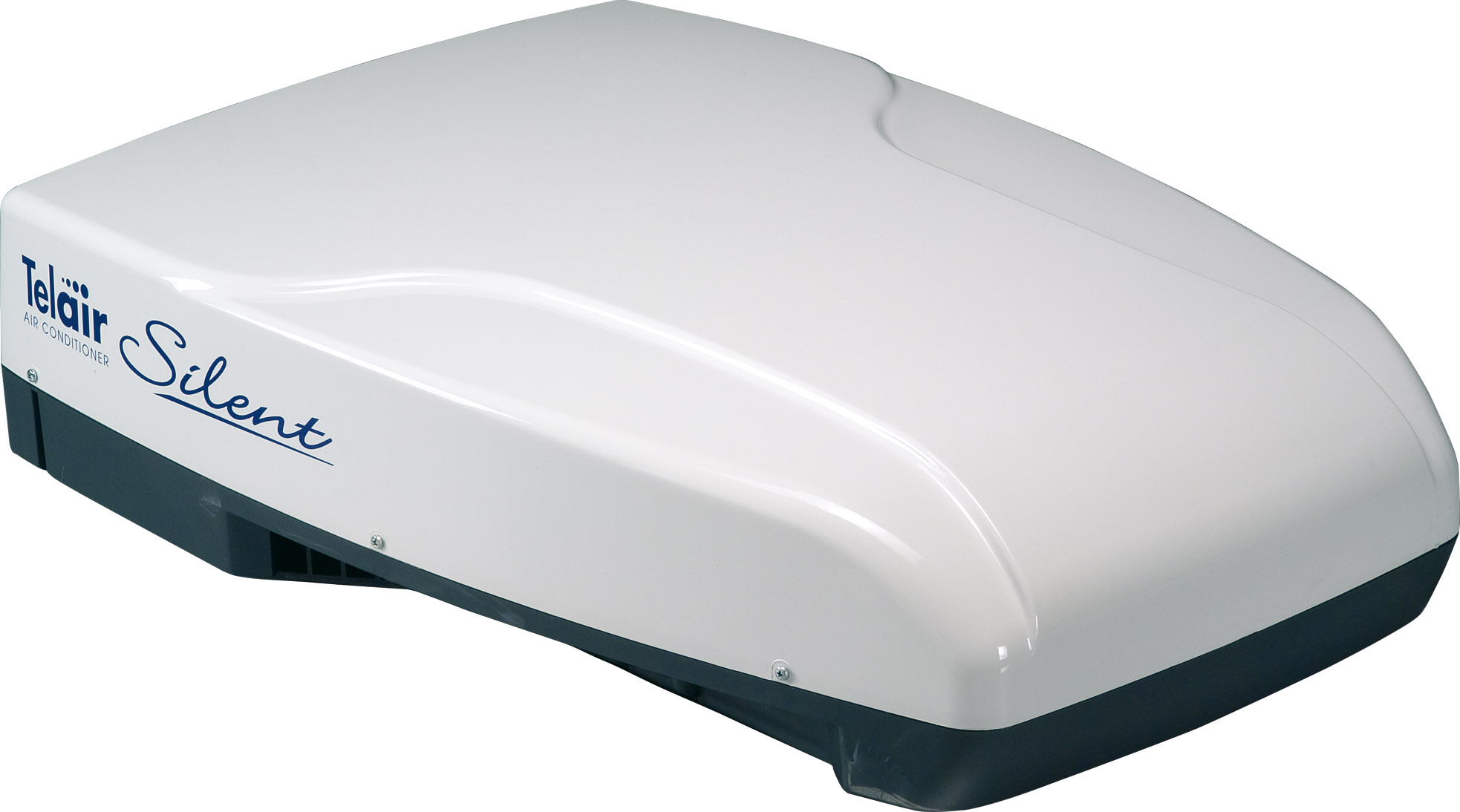

TELAIR 7300H MONOBLOCK HEAT PUMP AIR CONDITIONER.

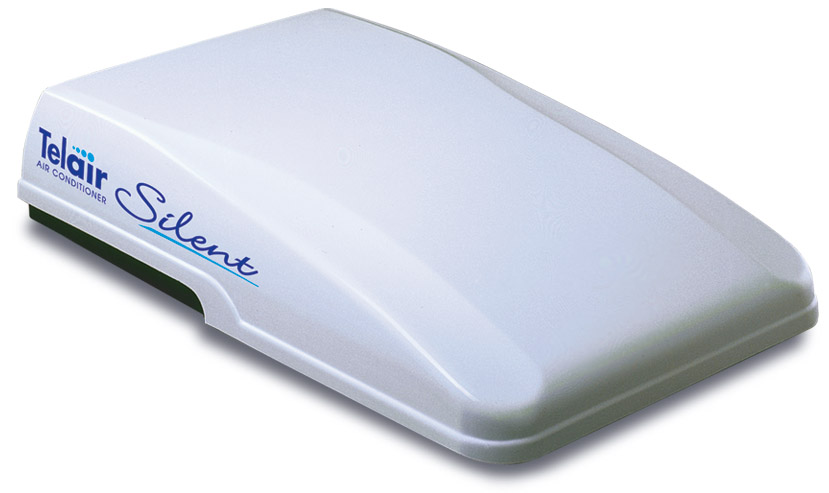

HIGHER OUTPUT TELAIR 12000H MONOBLOCK HEAT PUMP AIR CONDITIONER
