1)

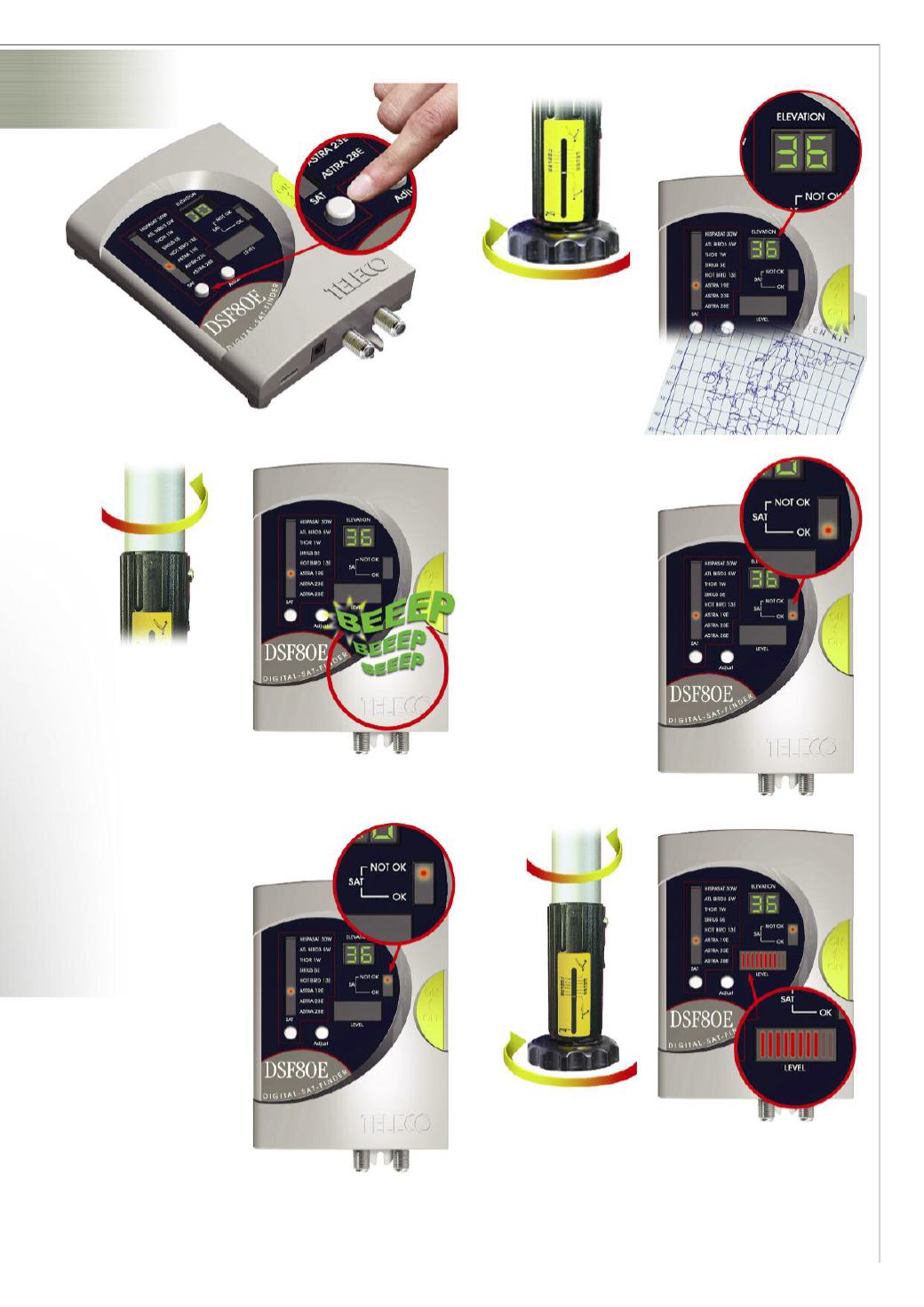

Select the
required satellite
(eg. ASTRA 19E )
2)
Raise the dish to the
relevant elevation for the
current location of the
vehicle (see the Angle map)
3)
Turn the dish
SOUTHWARDS until
DSF80/E emits a
continuous "BEEP" sound.
4)
Wait for the SAT OK
diode (LED) to light up,
confirming that the
located satellite is the
required one.
5)
If a different satellite has
been found, the SAT NOT
OK LED will light up and
the dish must be rotated
again until the "BEEP"
sound is heard again and
the SAT OK LED lights up.
6)
Optimise pointing
by slowly adjusting both dish
elevation and dish rotation, until the
maximum number of lit LEDs is obtained on the
LEVEL indicator.
