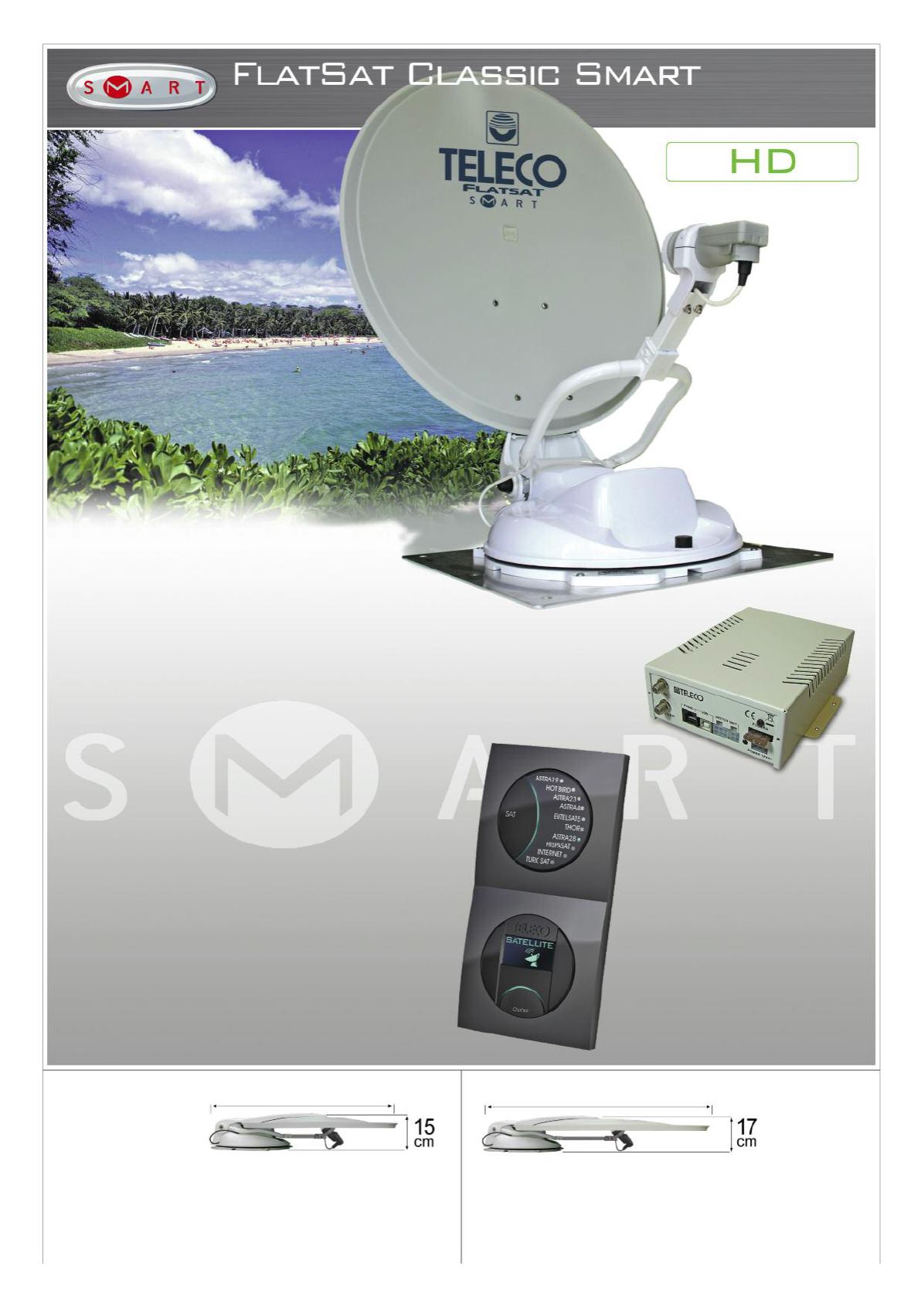

FLATSAT CLASSIC SMART
consists of:
1 External Satellite Antenna
1 DVB-S2 Control Unit complete with leads
1 Intelligent control panel
Control Unit DVB-S2 HD
• Power Supply: 12 Volt
• Max Consumption: 3,2 A
• Size: 136x198x62 mm
• Weight: 780 g
78 cm
98 cm
FlatSat claSSIc SMaRt 85
OPtION -
tWIN
for 2 receivers
QUaD
: for 4 receivers
Weight: Kg. 10,8 ca
Dish size: 85x78 cm
FlatSat claSSIc SMaRt 65
OPtION -
tWIN
for 2 receivers
QUaD
: for 4 receivers
Weight: Kg. 9,0 ca
Dish size: 63,5x59 cm
HD Automatic Satellite Antenna
SMART (patent pending) is a function that will make watching your
favourite television programmes via satellite even simpler.
Just press the ON-OFF key on the intelligent control panel and select a
programme from the Sat Receiver or the Sat TV. The antenna is
automatically raised and tracked until it is pointing at the satellite that
transmits the selected programme.
If you change channel, the SMART system immediately checks which
satellite is transmitting it and automatically repositions the antenna in a
matter of seconds.
The FlatSat Classic SMART is compatible with all Satellite Receivers and Sat
TVs featuring the DiSEqC function (Tivùsat, TNT Sat, Fransat, SKY, Canal
Digitaal, TV Vlaanderen, Telesat etc.) and especially with all the TELECO
2014 models.
The new intelligent control panel (patent pending) also lets you control
your antenna using just
2 keys:
• The ON-OFF key is used to switch the antenna on and start the search for
the selected satellite or to lower the antenna and switch it off.
• The SAT key is used to select one of the 10 satellites stored in the memory
(Astra 19, Hot Bird, Astra 23, Astra 4, Eutelsat 5W, Astra 28, Thor, Hispasat,
Turksat, Internet).
• It features an OLED screen able to display all the tasks carried out by the
antenna; the screen switches off automatically a few seconds after the
completion of each task.
• The panel is completed with a coal-grey Berker frame that can easily be
replaced with other differently coloured panels available on the market.
• Safety system with automatic antenna closure whenever the vehicle
engine is started
