30
Equipped with
LTE Suppressor Filter
to eliminate any disturbances
caused by new 4G Smartphones. (Only for countries that have already
incorporated LTE transmissions @ 800 MHz)
Equipped with
LTE Suppressor Filter
to eliminate any disturbances
caused by new 4G Smartphones. (Only for countries that have already
incorporated LTE transmissions @ 800 MHz)
Equipped with
LTE Suppressor Filter
to eliminate any disturbances
caused by new 4G Smartphones. (Only for countries that have already
incorporated LTE transmissions @ 800 MHz)

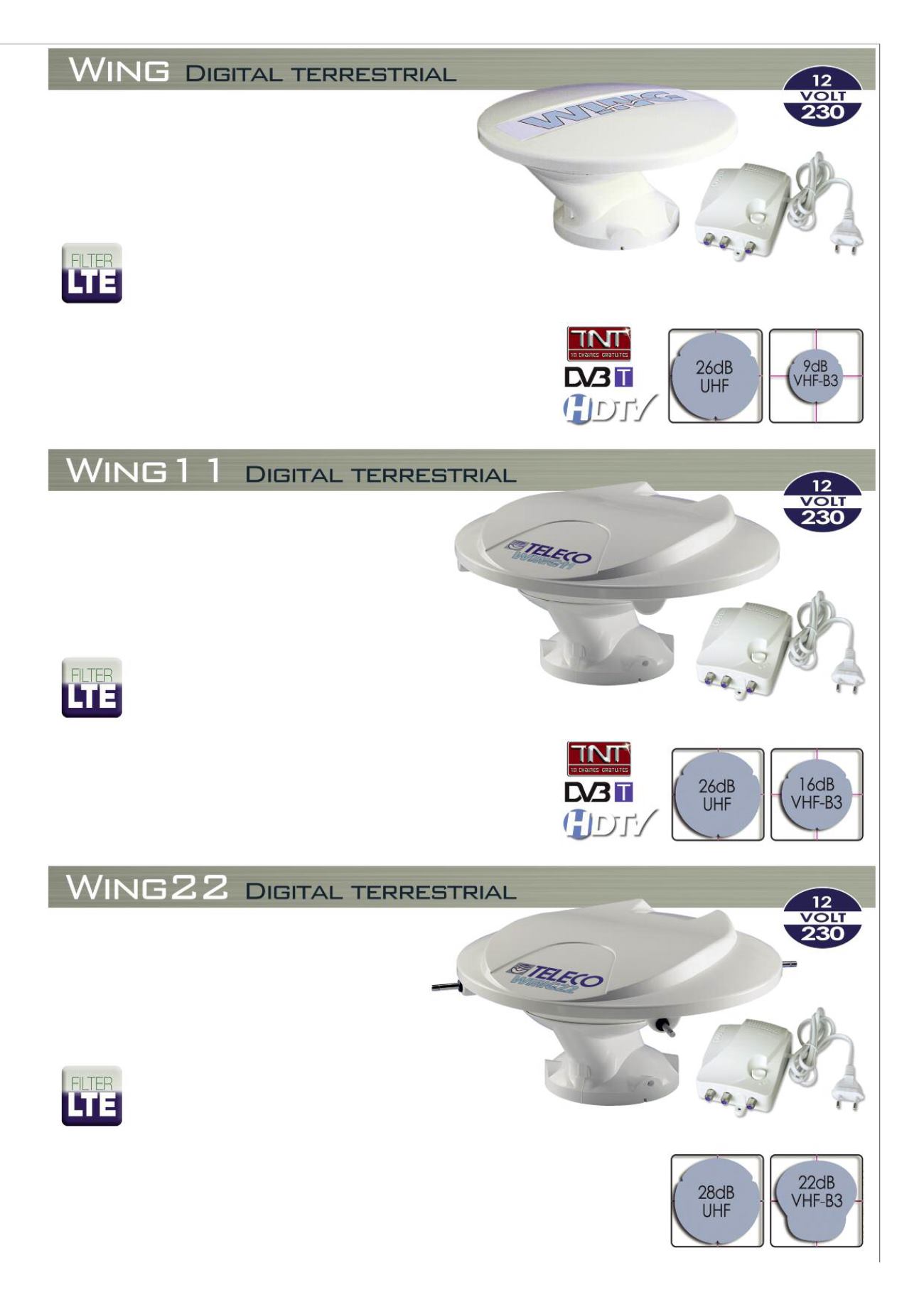

360° Omni-directional TV Antenna
26 dB UHF - 22 dB VHF- B3
This DUAL POWER antenna is the result of the combination
of two antennas: excellent performance is guaranteed also for the lowest-
frequency programs (VHF - B3). Extremely weak signals can be received thanks
to a low-noise amplifier.
Horizontal reception diagram
Horizontal reception diagram
Horizontal reception diagram
Gain with ampl.: CH 2-4
8 dB
CH 5-12 22 dB
CH 21-69 28 dB
Power supply:
12/24 Volt – 230 Volt
Diameter:
38 cm
Height:
16,5 cm
Weight:
1,4 Kg
PackaGe cONteNtS
1 Antenna, complete with 5 m coax
cable and 3 F connectors
1 Adjustable gain amplifier, with
2 outlets for 2 TV sets,
powered off
12, 24 and 230 Volts
PackaGe cONteNtS
1 Antenna, complete with 5 m coax
cable and 3 F connectors
1 Adjustable gain amplifier,
with 2 outlets for 2 TV sets,
powered off 12, 24 and 230 Volts
PackaGe cONteNtS
1 Antenna, complete with 5 m
coax cable and 3 F connectors
1 Adjustable gain amplifier,
with 2 outlets for 2 TV sets,
powered off 12, 24 and 230 Volts
360° Omni-directional TV Antenna
26 dB UHF - 16 dB VHF- B3
A combination of electronic amplifier high sensitivity and special
antenna design enable you to receive TV programs at the lowest
frequencies, too, while maintaining outside dimensions within 38 cm
.
Gain with ampl.: CH 2-4 3 dB
CH 5-12 16 dB
CH 21-69 26 dB
Power supply:
12/24 Volt – 230 Volt
Diameter:
38 cm
Height:
16,5 cm
Weight:
1,2 Kg
360° Omni-directional TV Antenna
26 dB UHF - 9 dB VHF- B3
MINI-antenna (diameter: 31 cm only) specially designed to receive UHF
channels. However, a special circuit configuration and a high-gain amplifier
make it possible to receive VHF B3 programs, too.
Gain with ampl.: CH 2-4
0 dB
CH 5-12 9 dB
CH 21-69 26 dB
Power supply:
12/24 Volt – 230 Volt
Diameter:
31 cm
Height:
16,5 cm
Weight:
1Kg
